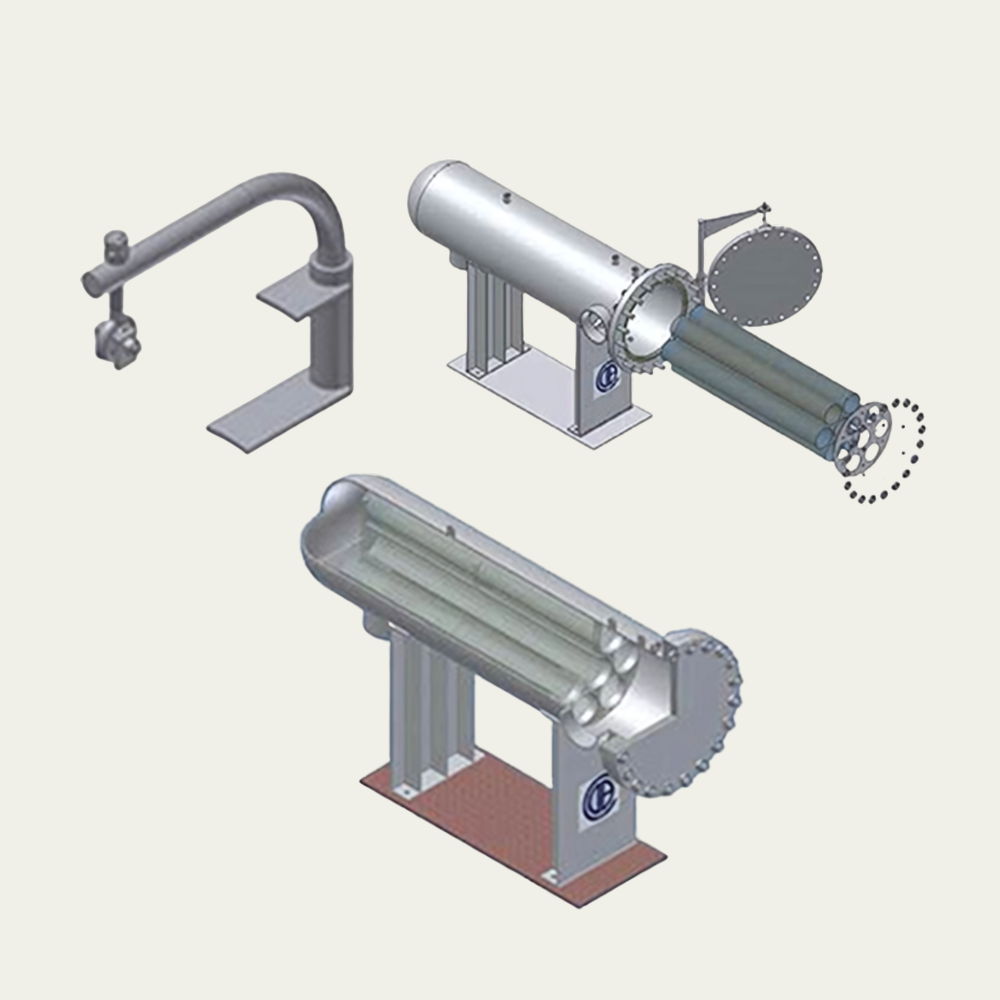

Cartridge Filters FBCH & FBCV

Our fabricated cartridge filter has been specifically designed to meet all customer requirements including for high pressure applications. Designed and fabricated to ASME V111 Div.1 as standard but can also be supplied to other pressure vessel codes – i.e. ASME B31.3 etc. Standard features include low pressure drops at high velocities; stainless steel perforated baskets as standard; vents and drains with the possibility to supply Davit lifts; quick open closures, DP gauges. We are also able to manufacture against customer requests in all types of sizes and materials.

Download Specifications

Technical Specification

Description Material Spare
BODY C.S
Cover A105
Gasket SW X
Studs A193 B7
Nuts A194 2H
Screen SS/ P. P X
Drain A105N
Vent A105N
Lifting Eyes C. S
Legs C. S
Davit* C. S
*Optional



Connections
Buttweld ASME B16.25
Flanged ASME B16.5

Request for Quote

We offer Engineering support and a complete suite of Engineered products for all your plant and flow control applications.
