Technical Specifications
| Description | Material | Spare |
| BODY | C.S | |
| Cover | A105N | |
| Gasket | SW | X |
| Studs | A193 B7 | |
| Nuts | A194 2H | |
| Screen | SS304 | X |
| Perf. Plate | SS304 | |
| Mesh | SS304 | |
| Drain | A105N | |
| Vent | A105N | |
| Lifting Eyes | C. S. | |
| Legs | C. S. | |
| Davit* | C. S. | |
| Valves | C. S. | |
| *Optional | ||

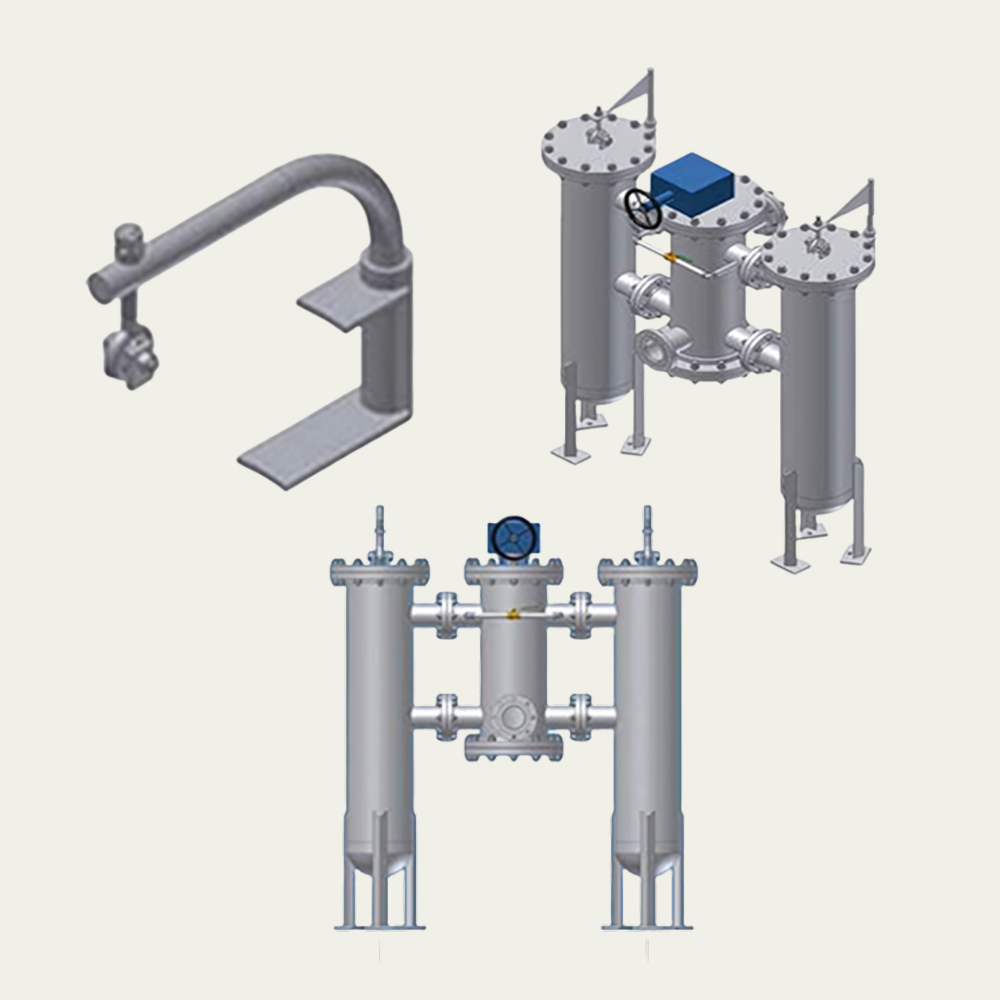

Duplex Basket Filters FBD6
SWITCH OVER THROUGH 6 WAY VALVE SYSTEMS
Our fabricated duplex basket strainers have been specifically designed to meet all customer requirements including for high pressure applications. Designed and fabricated to ASME V111 Div.1 as standard but can also be supplied to other pressure vessel codes – i.e. ASME B31.3 etc. Standard features include low pressure drops at high velocities; stainless steel perforated baskets as standard; vents and drains with the possibility to supply Davit lifts; quick open closures, DP gauges. We are also able to manufacture against customer requests in all types of sizes and materials. In addition to all features of a simplex filter, a duplex filter will have the additional advantage to allow maintenance without interrupting the process flow.
