Conical type temporary strainers are designed for the efficient removal of solids in new pipeline start up service. They are compact and rugged and can be installed either vertically or horizontally. They can be manufactured using any kind of wire mesh or perforated plate, in carbon and stainless steel or exotic alloys. Given dimensions are for reference purposes only. Strainers may be manufactured to any customer’s standards. Strainers are designed to be installed between ANSI B16.5 flanges to meet FF, RF and RTJ flanges

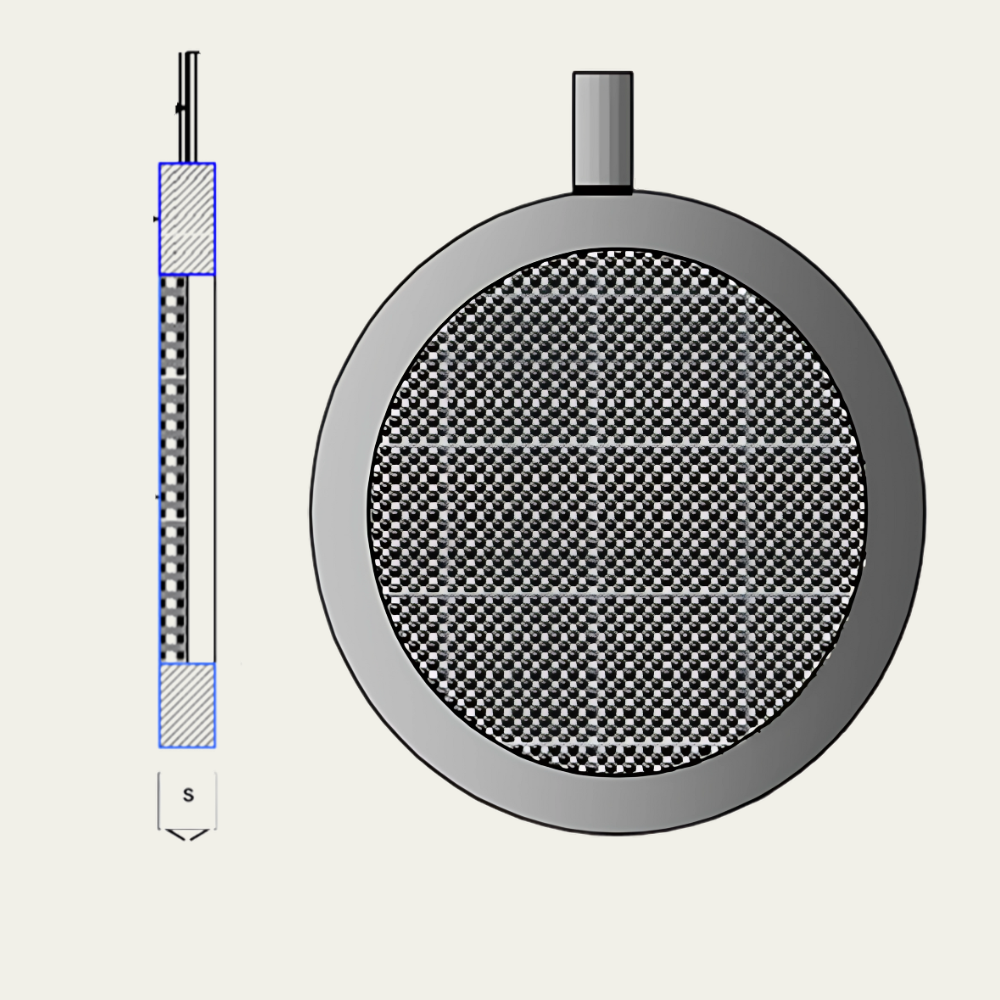

| POS. | DESCR. | MAT. | MAT. |
| 1 | RING | C.S.. | Ss 304 |
| 2 | SCREEN | Ss304 | Ss 304 |
| 3 | HANDLE | Ss 304 | Ss 304 |
| SIZE (INCHES) | 1 1/2″ | 2″ | 3″ | 4″ | 6″ | 8″ | 10″ | 12″ | 14″ | 16″ | 18″ | 20″ | 24″ |
| D | 73 | 92 | 127 | 157 | 216 | 270 | 324 | 381 | 412 | 470 | 534 | 584 | 692 |
| L | 70 | 70 | 70 | 80 | 100 | 100 | 110 | 110 | 120 | 130 | 130 | 140 | 150 |
| S | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 5 | 7 | 7 | 7 | 7 |
| A | 33 | 48 | 75 | 100 | 150 | 200 | 250 | 300 | 332 | 383 | 434 | 485 | 587 |
| DIMENSIONS : D, L, S, A, B ARE IN MILLIMETERS (MM)
OTHER SIZES ON REQUEST |
|||||||||||||
