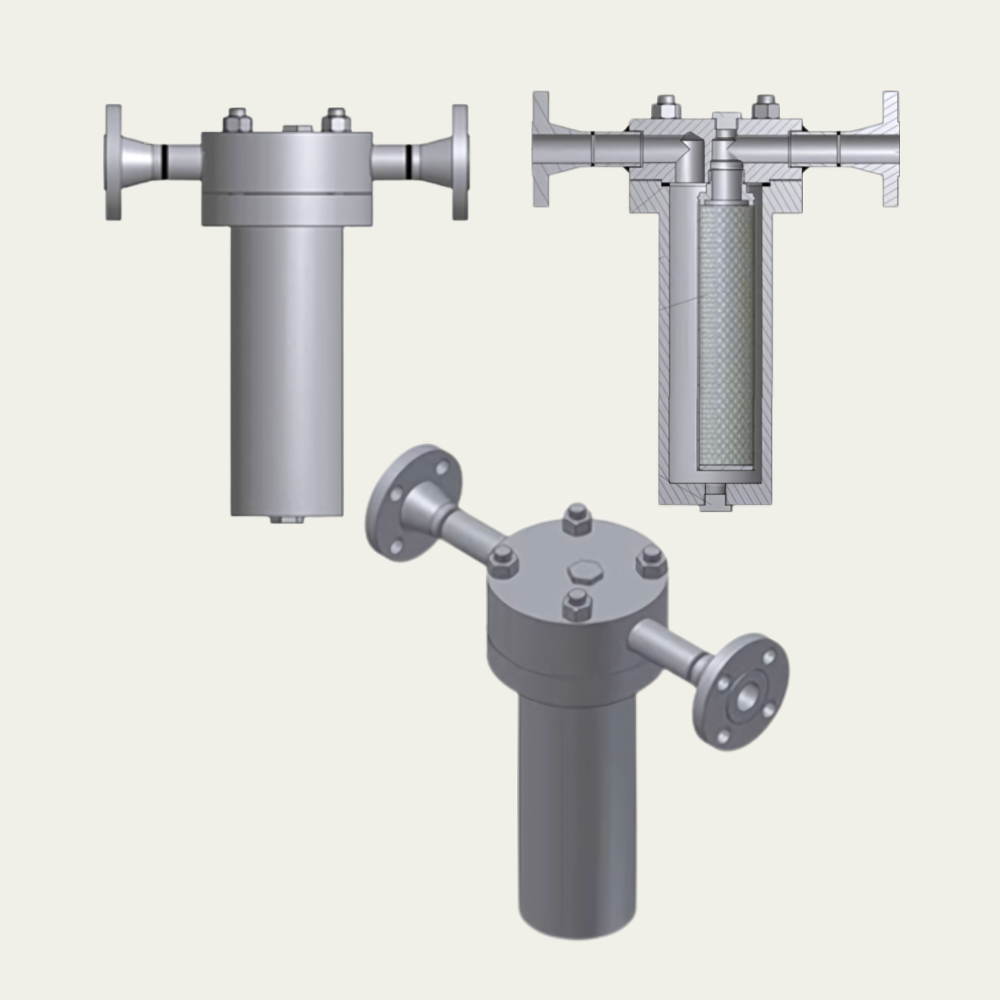

Our fabricated Simplex filter has been specifically designed to meet all customer requirements including for high pressure applications. Designed and fabricated to ASME V111 Div.1 as standard but can also be supplied to other pressure vessel codes – i.e. ASME B31.3 etc. Standard features include low pressure drops at high velocities; stainless steel perforated baskets as standard; vents and drains with the possibility to supply Davit lifts; quick open closures, DP gauges. We are also able to manufacture against customer requests in all types of sizes and materials. Simplex filters are a simple and efficient system to protect vital plant equipment such as pumps, compressors, heat exchangers, flowmeters etc.
| POS. | DESCR. | MAT. | SPARE |
| 1 | BODY | C.S.. | |
| 2 | COVER | A105N | |
| 3 | GASKET | SW | X |
| 4 | BOLTING | A193B7/A1942H | |
| 5 | SCREEN | SS | X |
| 6 | DRAIN/VENT | A105N |
| CONNECTIONS | |
| SOCKET WELD – SCREWED | ASME B16.11 ASME B1.20.1 |
| FLANGED | ASME B16.5 |
| SIZE | 1/2″ | 3/4″ | 1″ | 1.1/2″ | 2″ |
| L | 260 | 280 | 300 | 410 | 420 |
| H | 400 | 400 | 400 | 500 | 550 |
| WEIGHT (KG) | 20 | 21 | 23 | 25 | 27 |
We offer Engineering support and a complete suite of Engineered products for all your plant and flow control applications.
