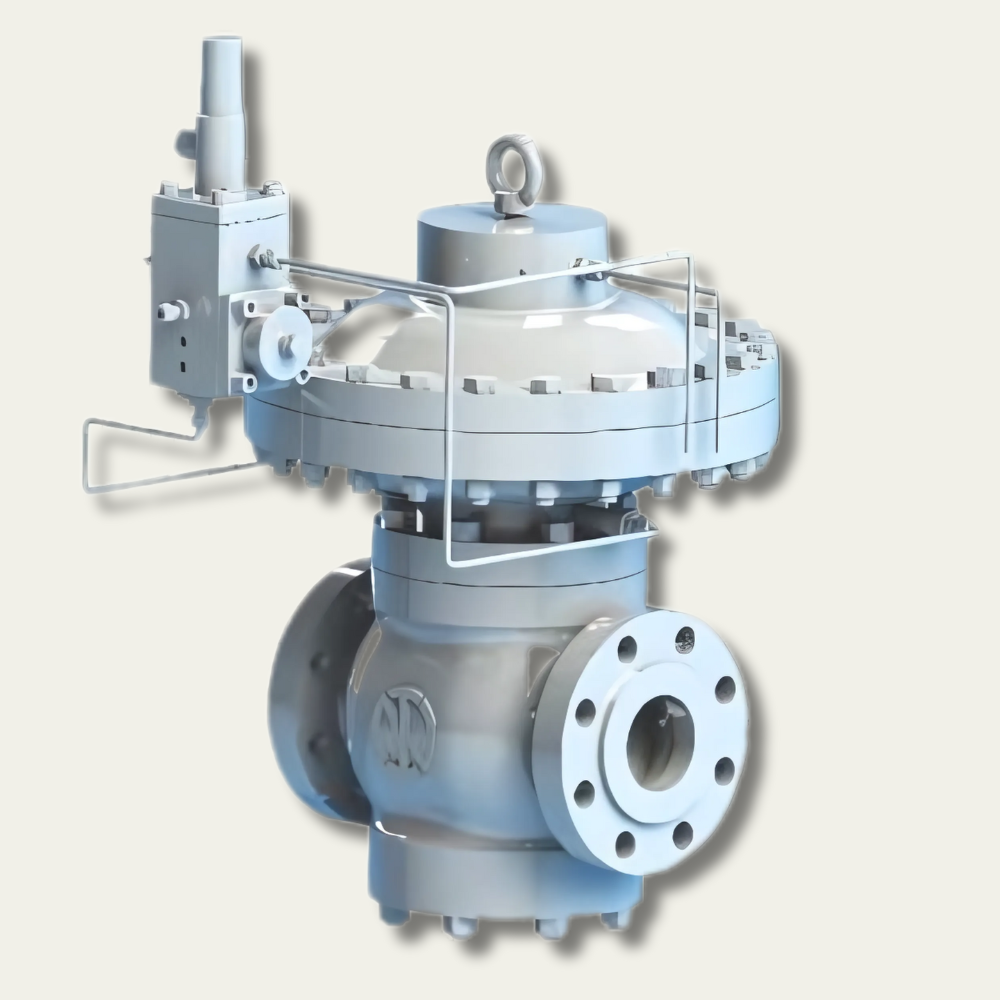

Technical Specifications

• Body Size & Connections:
  Available in flanged sizes from 1″ to 12″
• End Connections:
  Flange connections conform to ANSI B16.5 standards, offered in Class 150#, 300#, and 600#. Custom sizes and ratings available on request.
• Pressure Setting Adjustment:
  Flexibility in adjusting pressure setting throughout the spring range using the pilot’s adjusting screw..
• Accuracy Class (AC):
  Achieves up to 1.0 accuracy class as per EN-334 standards, ensuring precise pressure control.
• Lock-up Pressure Zone Class (SZ):
  Up to 2.5 lock-up pressure zone class, allowing a specific range between outlet pressure and spring range without affecting performance.
• Maximum Inlet Pressure:
  Varies with flange rating. For Flanged ANSI B16.5 Class 150#, max inlet pressure is 20 Barg; for Class 300#, it’s 50 Barg, and for Class 600#, it’s 100 Barg.
• Temperature Capabilities:
  Operating range from -20°C to 60°C. Extended temperature ranges available upon request.
• Pressure Registration:
  External pressure registration with a 3/8″ NPTF connection, enabling accurate pressure measurement.
