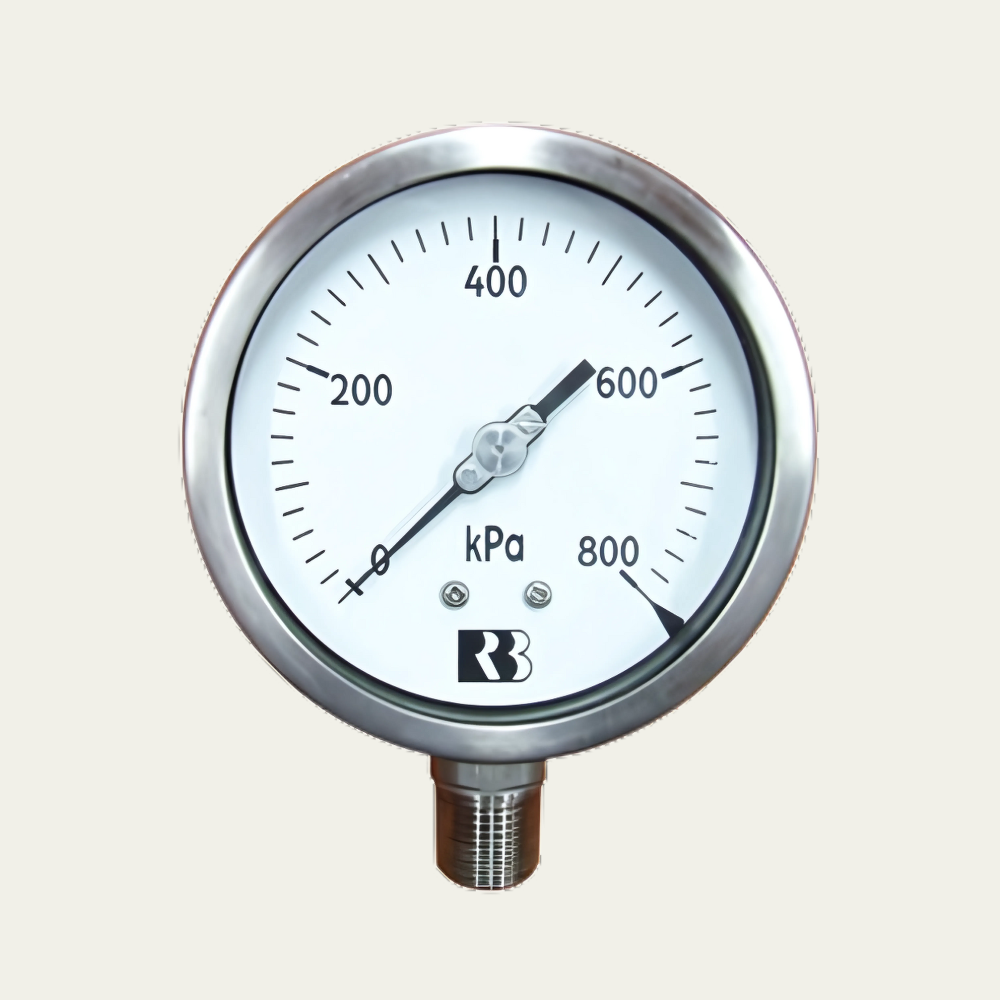

Technical Specifications

Dial Sizes: 63 mm, 100 mm, and 160 mm for various applications.

Pressure Ranges: From -30 inHg (vacuum) to 25,000 psi, suitable for high and low-pressure scenarios.

Media Compatibility: Works with gaseous, liquid, corrosive, and crystallizing media; optional materials like Monel or Hastelloy for durability.

Safety Features: Overload protection up to 130% of full scale; compliant with EN 837 safety standards.

Accuracy: 1.0% to 1.6% of full scale for critical measurements.

Connections: NPT or BSP threads in ¼” or ½”, with various mounting options.

Temperature Tolerance: Ambient: -40°C to 65°C; Medium: up to 300°C.

Filling Options: Dry or liquid-filled for vibration resistance.

Electrical Outputs: Optional remote monitoring and process control capabilities.

Window: Made of shatterproof safety glass or acrylic for durability.

Accessories: Diaphragm seals, gauge savers, and dampeners for specialized environments.
