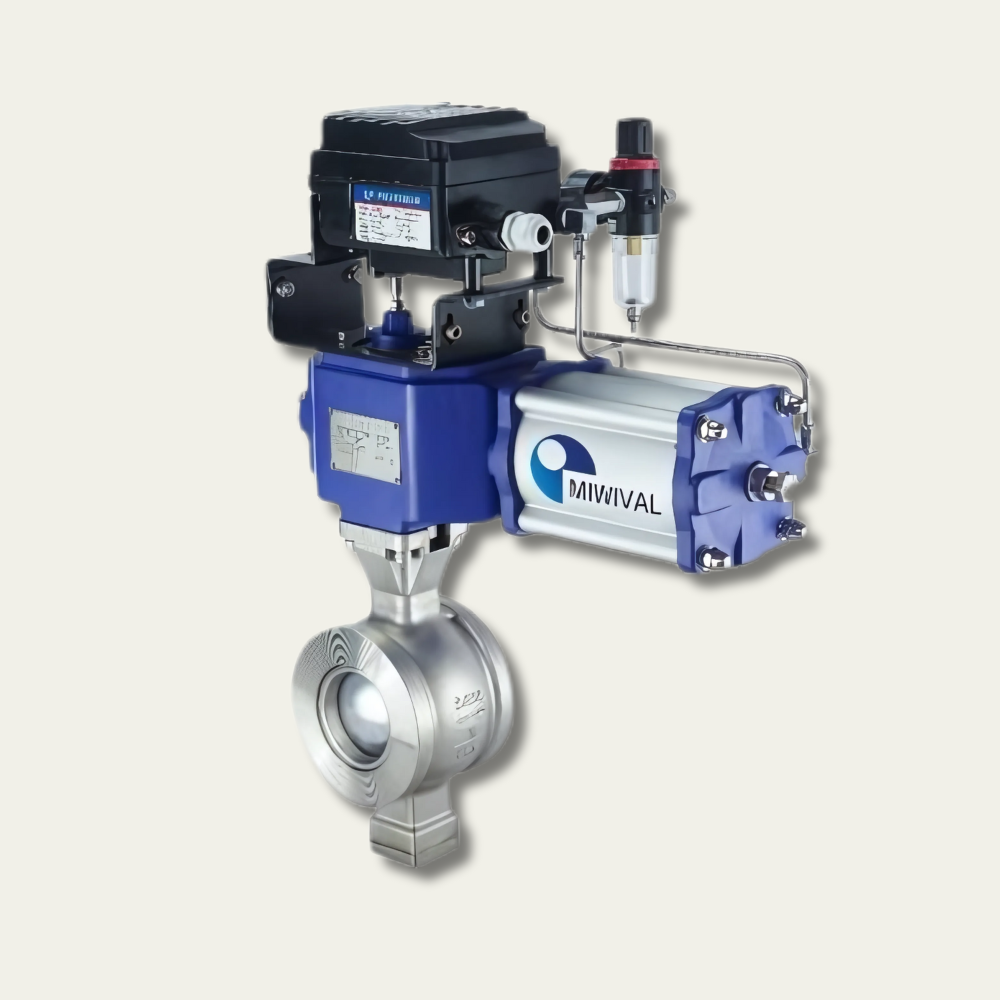

Flowlink Valves and Controls V-port segment valve is an economical, high-performance control valve designed for liquid, gas, vapor, and slurry applications, particularly where high capacity and wide rangeability are needed. Available in sizes ranging from 1? to 32?, these lightweight, low-torque valves are easy to handle and mount. They offer excellent control performance, enhanced by a rotating Q-trim attenuator for cavitation and noise reduction, featuring a self-flushing design. With a real one-piece body that eliminates leak paths and resists piping forces, an anti-blowout shaft, and fire-safe certification (API 607, 7th edition), these valves ensure reliable, low-maintenance operation. They are suitable for use in petrochemical, refining, chemical, and pulp & paper industries and can be mounted in various orientations for added versatility.
| Size Range | DN 25 – 800 / 1″ – 32″ |
| Body construction | One piece body Design |
| End Connection | Flanged / Flangeless (wafer) |
| Face to face | According to IEC 60534-3-2 / ISA 75.08.02 or IEC 60534-3-1 |
| Temperature range | -52 to + 425 °C / -60 to +797 °F |
| Tightness | According to ANSI/FCI 70-2 class V (metal seat) and class VI (soft seat) |
| Actuation | Manual. Pneumatic and Electric |
| Material | WCB/CF8/CF8M special material on request |
We offer Engineering support and a complete suite of Engineered products for all your plant and flow control applications.
