Technical Specification
| Size Range | 2” ~56” (DN50~DN1400) |
| Class Range | 150Lb~2500Lb (PN10~PN420) |
| Actuation Options | Manual, Gear, Pneumatic, Electric |
| Design Standard | API 6D, API 608, ISO 17292, ASME B16.34 |
| Temperature | -46°C to +200°C |
| End Connection | RF/ RTJ – ASME B16.5 / B16.47; BW – ASME B16.25 |
| F – F Dimension | ASME B16.10 |
| Construction | FB/RB; 2/3PCS Body; 2/3/4 Way; Soft/Metal Seat; Side/Top Entry |
| Design Features | DBB; Relief Cavity; Emergency Sealant Injection; Vent & Drain; Antistatic; Blowout Proof Stem; Fire Safe (As Per API 607) |
| Special | NACE; Cryogenic; Extended Stem; Fugitive Emission; Lip Seal |
| Material | Forged & Cast CS, LTCS, SS, AS and Special Steel |
| Applications | Oil & Gas, Chemicals, Waters, Power, Marine, Mining, etc. |
Beyond Standards:

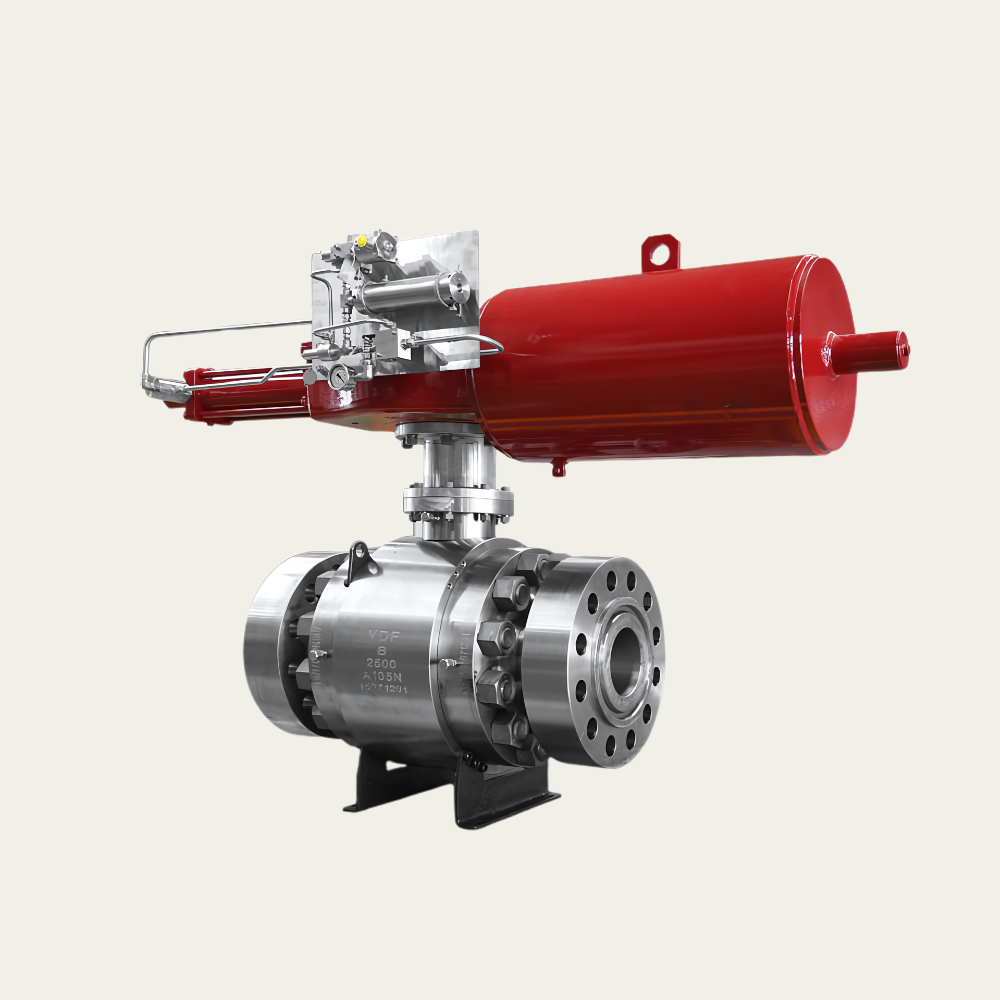

- Trunnion-mounted Ball Valve design complies to API 6D
- Valves offered with API 6D monogram
- Wide portfolio of Side-entry and Top-entry designs
- Fugitive emissions – Soft and Metal seated valves complies to ISO 15848-1, Class AH and BH
- Stem seal configurations tested to API 622 at Yarmouth Research labs, Maine, USA
- Firesafe design – Tested to API 607 and API 6FA
- CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
- Compliance with Jet Fuel and Defense applications
Versatile Solutions:
- Wide portfolio of Side-entry and Top-entry designs
- Options: Buried service, Cryogenic
- Offered with Electric, Pneumatic and Hydraulic Actuators
- In-house Tests Capabilities – Cryogenic Test, Pipe Bending Test, Vacuum Test and Fast Closure Test
